    2100mm Packing Height PLC Control Luggage Wooden Box Packing Machine

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : JL2100-B
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

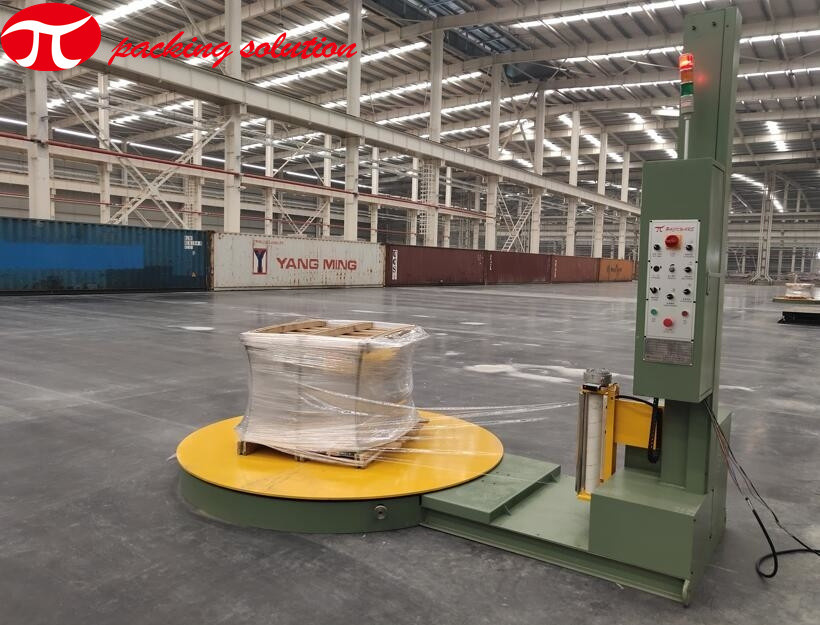

    2100mm Packing Height PLC Control Luggage Wooden Box Packing Machine

    2100mm Packing Height PLC Control Baggage Wrapping Machine For Electronics Industry


    MACHINE APPLICATION:

    The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film, which makes the goods stable, tidy and convenient for transportation; moreover it has waterproof and dust proof effects. It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.


    TECHNICAL PARAMETERS:

    Item dataJL2100-B (Auto)
    Working modeAuto (PLC)
    Turntable motor0.40KW
    Up-down motor0.37KW
    Turntable speed11r/min(adjustable)
    Film carriage speed2.9m/min
    Turntable diameter1500mm
    Turntable height110mm
    Tension controlMagnetic controller
    Height controlPhotocell sensor
    Turntable startstop modeSoft start & Soft stop
    Max load weight1500KG
    Max load height2100mm
    Wrapping material

    Stretch film

    ID76mm,width:500mm

    Power voltageAC 380V/50HZ
    Gross weightAbout 800kg
    VolumeAbout 4cbm

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.

    2100mm Packing Height PLC Control Luggage Wooden Box Packing Machine

    Optional parts:


    1. TOP PLATEN: for extra high or very light pallets, the goods on the pallet is easy to falling down during turntable turning. The top platen is used to press the top of the pallets to fix the position and avoid falling and shifting of the goods.


    2. PRE-STRETCH DEVICE: Pre-stretch means the film is pre-stretched before wrapping the objects. It can ensure the stability when used for light or high package. It can make the pallet stable during wrapping. It can also save 30~50% film than normal.


    3. ACCESS RAMP: used for convenient loading&offloading of the pallet when transport by the manual fork-lift. It’s not necessary when the loading is by an electric forklift.


    Film carriage
    Stretch system up to 250% to min film consumption (Prestretch ratio can be specially made according your requirements.)
    Option
    Pre-stretch & width film carriage
    Top-platen(one set need)
    Packing height: 1500mm
    Turntable diameter: 1650mm, 2000mm
    Turntable capacity: 2000kg
