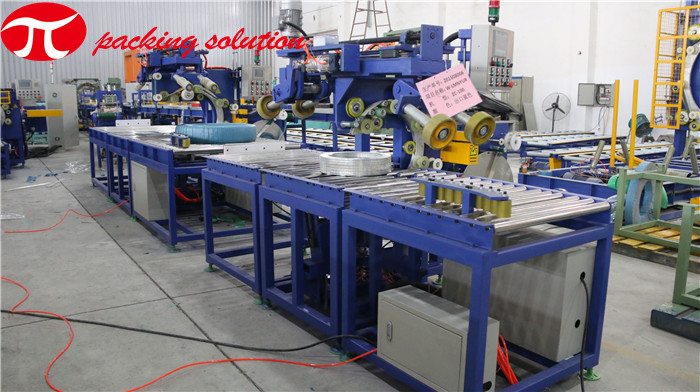

    GW300 Horizontal PLC Control Bearing Stretch Wrapping Machine With Conveyor 3m/Min

    GW300 Horizontal PLC control bearing stretch wrapping machine with conveyor 3m/min


    Horizontal PLC control bearing stretch wrapping machine with conveyor application:

    JIINGLIN designed the series of horizontal bearing packing machine for through-eye wrapping of various bearings by stretch film, compound paper, VCI paper&etc to achieve the closed and protective packing and to simplify the wrapping procedure and lessen the labor density, it’s suitable for both small and large size bearings. The machine can be connected with associated production line to or operated independently.


    Horizontal PLC control bearing stretch wrapping machine with conveyor​ main datas:

    MODELZC200ZC300
    Object width≤200mm≤300mm
    Object ID≥250mm≥400mm
    Object OD≤700mm≤1300mm
    Object weight≤300kg≤500kg
    Packing material

    PE film/knit tape/compound paper tape/crepe paper,etc

    Width:50-60mm, core ID:55mm,OD: 100-500mm

    PE film/knit tape/compound paper tape/crepe paper,etc

    Width:50-60mm, core ID:55mm,OD: 100-500mm

    Automatic mechanical handOptionalOptional

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.


    Horizontal PLC control bearing stretch wrapping machine with conveyor​ main features:

    1. Horizontal structure with motorized conveyors for efficient packing.

    2. Flexible wrapping table specially designed for turning of bearings.

    3. PLC and HMI for automatic operation.

    4. The tension and overlapping degree of wrapping material can be adjusted.

    5. Photo sensors for automatic coil positioning.

    6. Different packing material can be chose.

    7. Packaging tension is adjustable by special breaker.

    8. Independent control cabinet easy for operation and maintenance.

    9. Automatic material feeding and cutting is available.

    10. Safe guardrails for turning part ensure safe operation.

    11. The rollers wrapped by polyurethane to protect the products.

    12. Conveyors length can be customized.
