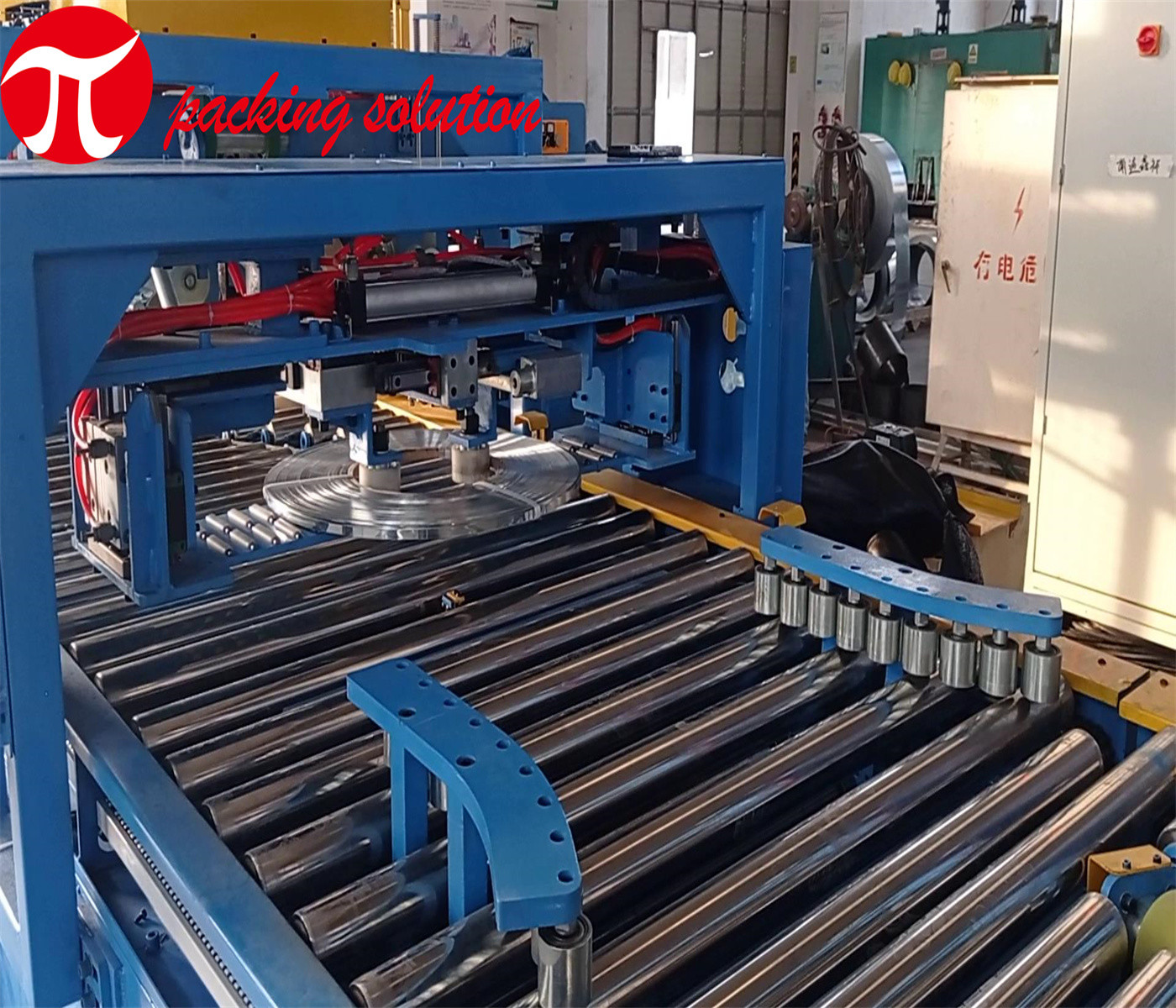

    PLC Control Steel Coil Horizontal Industrial Wrapping Machine 380V 50Hz

    Ask Lasest Price
    Brand Name : jlpack
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    PLC Control Steel Coil Horizontal Industrial Wrapping Machine 380V 50Hz

    Horizontal Industrial Wrapping Machine for steel coils with PLC program control


    Product description:


    The horizontal industrial wrapping machine is widely applied for wrapping copper coil,steel coil,aluminum coil,bearing,steel wire coil, cable coil,rubber coil and other coil objects,which are easy to transport and store,and improve the appearance quality of the products.The object to be packed is relating sealed to provide good protection,fixation and decoration.


    Product technical data:

    ModelGW100GW400
    Wrapping materialStretch film/compound paperStretch film/compound paper
    Material sizeWidth:50mm,ID:20mmWidth:150mm,ID:50mm
    Ring speed60-100r/min70r/min
    Product width100mm300mm
    Product OD300mm2000mm
    Product ID200mm800mm

    Note: The datas are only for reference, the machine can be custom designed according to specific object size.


    PLC Control Steel Coil Horizontal Industrial Wrapping Machine 380V 50Hz


    Product basic features:

    1.Simple structure, easy and safe operation.
    2.PLC adopted for automatic program control.
    3.Indicator alarms automatically when trouble occurs, and errors will be shown automatica lly.
    4.HMI for option for more intelligent control.
    5.A wide range size of steel coils can be wrapped by this machine.
    6.The ring height could be adjusted for different object ID&OD.
    7.Anti-wearing polyurethane is adopted for the friction wheel, ring with integral mould structure.
    8.Different packing material can be used according to your needs.
    9.The carrier roller and protective roller are wrapped with polyurethane.
    10.Soft start, soft stop and precise reset of the ring.
