Fast and effective Automatic plastic pipe stretch film strapping and bagging machinery

1.SUMMARY:

1) This automatic plastic pipe packing line is an fully automatic solution specially designed for modern plastic pipe manufacturers to meet the high automation needs of pipe packing.

2) The machinery mainly include pipe counting and bundling system, pipe bundle stretch wrapping system, pipe bundle bagging system and offloading into basket system, etc. It can count, collect, bundle, strap, bag and offload into basket in-line automatically for specific pipe specifications.

3) This equipment is controlled by the general control table, and every part can be separately controlled.

4) The speed of this equipment should match up with the speed of pipe extrusion line.

2. TECHNIQUE PROCESS DESCRIPTION:

1. The pipes are dropped from the end of extrusion machine to pipe counting and bundling system one by one. The functions of pipe counting, collecting and initial aligning will be completed.
2. After counting, one or several pipes will go into pipe bundling system.
3. Ends aligning system will align pipes secondarily. Pipe bundle clamping system will clamp pipe bundle closely.

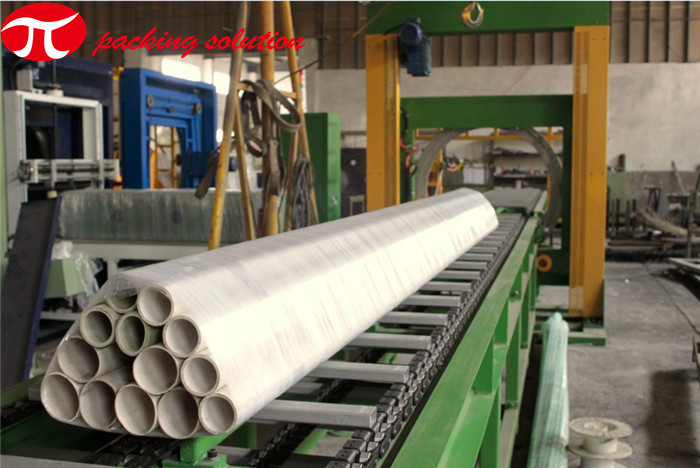

4. Stretch wrapping system will strap and fix the pipe bundle.
5. After strapping, pipe bundle will go into bagging system for bagging. The packaged pipe bundle will be conveyed out and offloaded into the basket by offloading system after being bagged.
6. Basket will be settled and moved away by manual timely.

3.Scope of pipes

name: PVC, PPR, PE, aluminum-plastic composite

Pipe diameter: 20 mm ~ 110 mm

Length: 2000mm, 3000mm, 4000mm, 6000mm

Bundle pipe outer diameter: 100-200mm

Shanghai Jinglin Packaging Machinery Co., Ltd was established in 1998. The philosophy of company is to follow the needs of clients. We have extended our business scope from standalone machines to complete packing lines, from local to the global market. We have developed more than 200 types of packing machines and professional solutions for 13 industries including steel industry, aluminum/copper processing industry, plastic pipe industry, wire&bar industry, bearing industry&etc.
