    Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GW200
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD

    High Safety Horizontal Automatic Steel Coil Wrapping Machine 380V 50HZ 800mm Coil OD


    MACHINE APPLICATION:

    With an aim to fulfill varied requirements of our valued clients, we are engaged in offering the high performance steel coil strip wrapping machine which is applied for automatic packing a wide range of steel strips in horizontal state, to make the copper strip well-protected from influence of water, dust, rust, etc. with high efficiency and nice packaging for saving material and labor cost.


    BASIC FEATURES:

    1. Automatic or semi-auto control can be chose according needs.
    2. With motor driven powered roller conveyor for automatic loading&offloading of the copper coils.
    3. High anti-friction PU adopted for friction wheels; whole casting structure for turning ring.
    4. The level height of turning ring is adjustable, suit for different diameter.
    5. Synchronous wrapping system can be chose for wrapping two different material at one operation process.
    6. The supportive and protective rollers wrapped by PU.
    7. Special tension control system, the tension and overlapping rate of packing material can be adjusted according to needs.
    8. Central positioning for best packaging performance.
    9. Different packing material can be chose.

    MAIN PARAMETERS:

    ModelGW200-NGW200-W
    Coil OD600-1200mm600-1200mm
    Coil ID≥400mm≥400mm
    Coil width≤200mm≤200mm
    Coil weight≤300KG≤500KG
    Cutting typeManual cuttingAuto cutting
    Ring speedAbout 70r/minAbout 80r/min
    Wrapping materialknit tape, compound paper tape,stretch film, non-woven fabrics,etcknit tape,compound paper tape, etc
    Material width100-120mm80-100mm
    Material OD200mm450mm
    Material ID55mm55mm
    Power output1.5KW2.2KW
    Power supplyAC/380VAC/380V
    Air supply (6-8kgf/cm2)WithoutWith
    Circular labeling systemOptionalOptional
    Synchronous wrapping systemOptionalOptional

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.

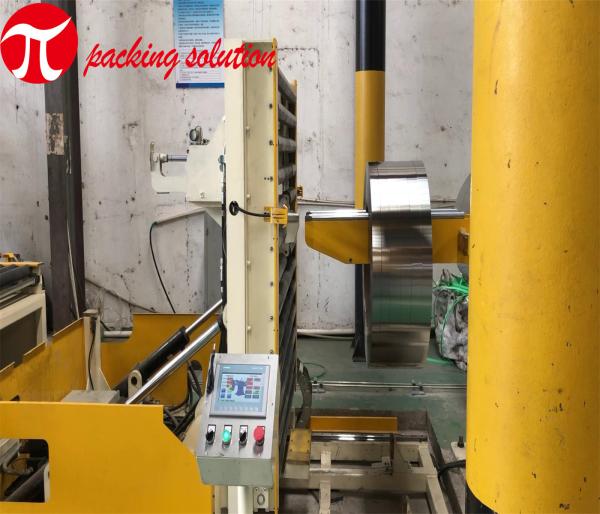

    Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD

    OPERATION:

    The automatic steel coil wrapping machine includes: powered feeding conveyor, automatic wrapping station, powered discharging conveyor. Operation process is as follow:

    1. Load coil by manual or automatically from the front end of production station to the feeding conveyor of the packing machine.
    2. The conveyor transferred the coil to the wrapping station automatically.
    3. Automatic coil centering.
    4. Automatic coil wrapping.
    5. Automatic cutting the wrapping material.
    6. The packed coil is transferred out from the wrapping station.
    7. Move the coil away from the machine and ready for next packaging.
