    Labor Saving Copper Strip Coil Packaging Line With Turnstile Stacking System 4.0KW 380V 20-80r/Min

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GD300
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Labor Saving Copper Strip Coil Packaging Line With Turnstile Stacking System 4.0KW 380V 20-80r/Min

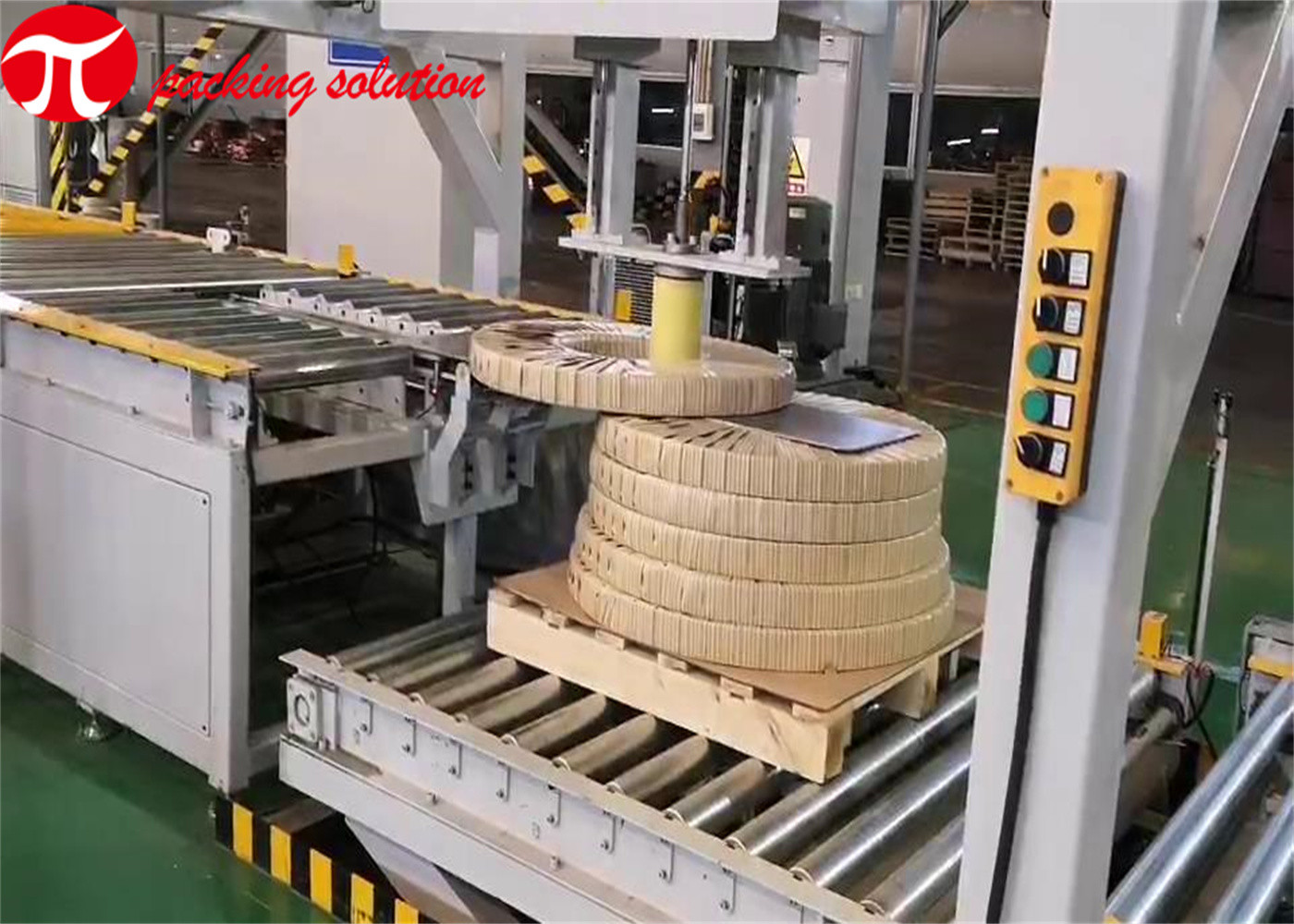

    Labor Saving Copper Strip Coil Packaging Line with turnstile and stacking system 4.0KW 380V 20-80r/min​


    Production Descripment:


    The copper coil packing machine is developed for packing different ring-shaped products including steel coils, aluminum coils, copper coils, wire coils, cable coils, pipe coils, tyres&etc by stretch film, paper or other packing material available. Easy operation and convenient maintenance. It greatly save the labor force and improve the work efficiency from the traditional manual packing.


    Automatic Copper Strip Coil Packing Machine Labor Saving 4.0KW 380V features:

    1. The wrapping unit is moveable, safe&convenient for coil.
    2. Automatic control by PLC program.
    3. Standard modular design of the metal coil wrapping machine, stable performance, convenient maintenance.
    4. Solid whole casting structure for turning ring.
    5. Height of the wrapping ring adjustable for metal coils with different OD.
    6. The wrapping tape is cut automatically by the cutter.
    7. The indicator lights will alarm automatically when error happens.
    8. The rollers are wrapped by PU to protect the products effectively.
    9. Various kinds of packing material can be choose according to needs.
    10. HMI touch can be optioned for more smart operation.

    Automatic Copper Strip Coil Packing Machine Labor Saving 4.0KW 380V parameters:

    ModelGD300GD600
    TypeWrapper moveableWrapper moveable
    Coil OD700mm-1500mm700mm-1500mm
    Coil ID508mm/610mm508/610mm
    Coil width20mm-300mm30mm-600mm
    Coil weight50kg-2000Kg50kg-3000Kg
    Roller speed5-8m / min5-8m / min
    Ring speed80r/min80r/min
    Power supplyAC/380V/50HzAC/380V/50Hz
    Air supply6-8kgf/cm26-8kgf/cm2
    Driven typeElectricElectric
    Power outputAbout 4.0KWAbout 4.0KW
    Wrapping material

    Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm

    Stretch film: width:80-100mm; ID:50mm;OD≤150mm

    Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm

    Stretch film: width:80-100mm; ID:50mm;OD≤150mm

    Automatic mechanical handOptionalOptional
    HMI screenOptionalOptional
    Synchronous wrapping systemOptionalOptional

    Labor Saving Copper Strip Coil Packaging Line With Turnstile Stacking System 4.0KW 380V 20-80r/Min

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
