    High Reliability Horizontal Wrapping Machine For Steel Pipes 1.5kW Fast Packaging Speed

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GG800
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    High Reliability Horizontal Wrapping Machine For Steel Pipes 1.5kW Fast Packaging Speed

    High Reliability Horizontal Wrapping Machine for Steel Pipes 1.5kW Fast Packaging Speed


    MACHINE DESCRIPTION AND APPLICATION:


    The Wrapping Machines are extensively appreciated in the market for their indispensable features such as compact designs, long service life, high functionality, hassle free performance, anti corrosive body, robust construction, etc.

    The machines provided by us are manufactured using the best quality components and innovative technology under the stern vigilance of our dedicated professionals in tandem with industry quality standards. Additionally, we provide these machines in numerous technical specifications at the best prices.

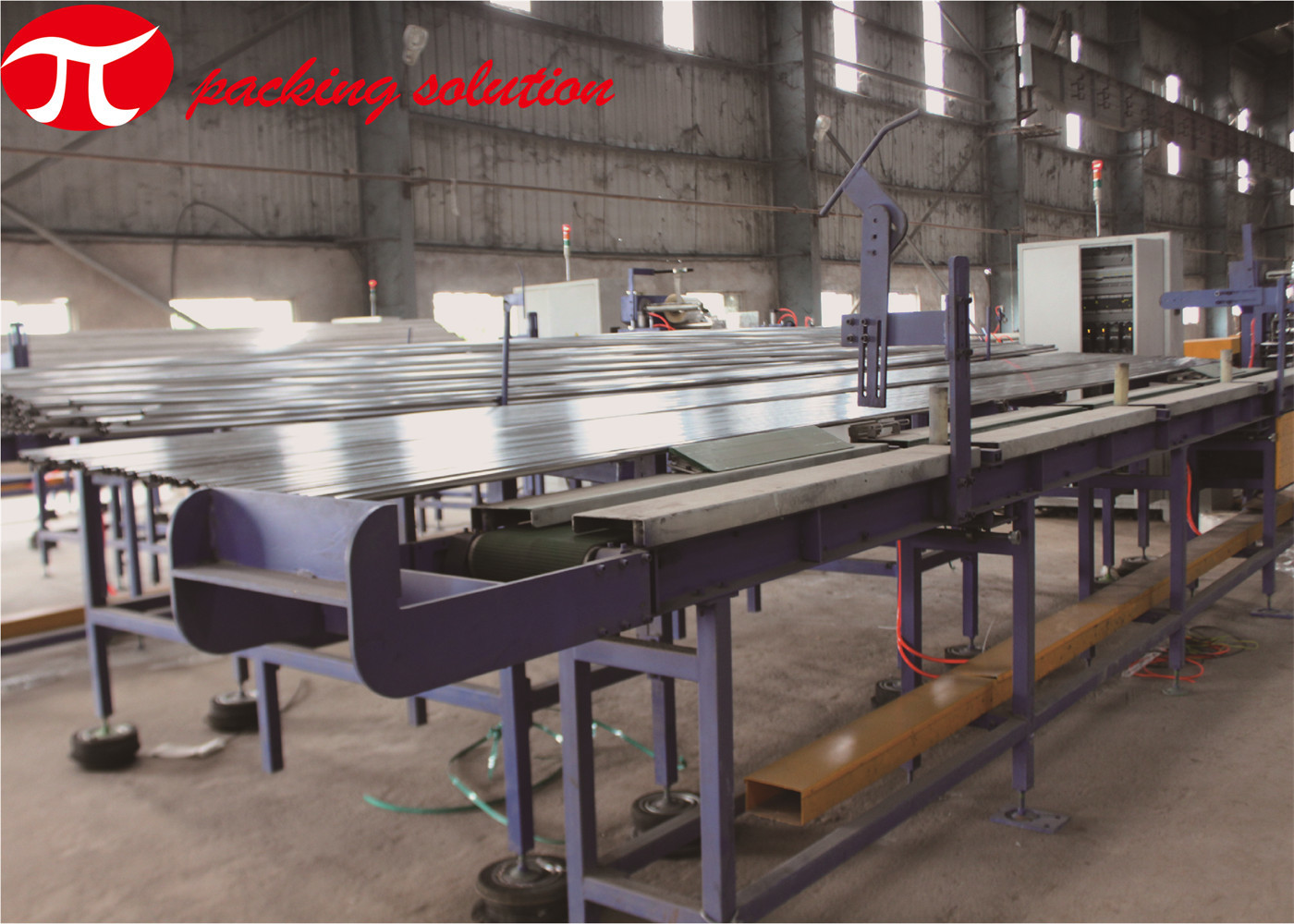

    The packing machine is able to protect the pipes from damage during handling, transportation and storage. The stretch wrapping machine enables superior product protection, faster and more effective packaging, also greatly reduce materials consumption and energy consumption.


    MAIN PARAMETERS:

    Package length3000-9000mm
    Max circumcircle dia.800mm
    Ring speed60r/min
    Conveyor length

    Customized according to actual requirements

    Conveyor speed8-12m/min
    Conveyor height900mm
    Power supplyAC/380V

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.


    BASIC FEATURES:

    1. PLC programmable controller and man-machine dialogue touchscreen.
    2. Automatic fault alarming.
    3. Friction structure adopted for safe, steady and strong operation.
    4. Photocell sensor adopted for automatic object tracking, precise positioning, convenient and safe for operation.
    5. Special tension adjust system ensures uniform tension of the packing material.
    6. Protective rollers wrapped by polyurethane used to well protect the object from scratches.
    7. Height of the ring center can be adjusted in accordance with the specific product.
    8. Soft start and soft stop ensure safe operation.
    9. Independent control cabinet, convenient for operation and maintenance.
    10. The conveyor length can be customized according needs.
    11. The mechanical hand device can be chosen for automatic material feeding & cutting operation.
    12. Two different material can be wrapped synchronously (optional).
