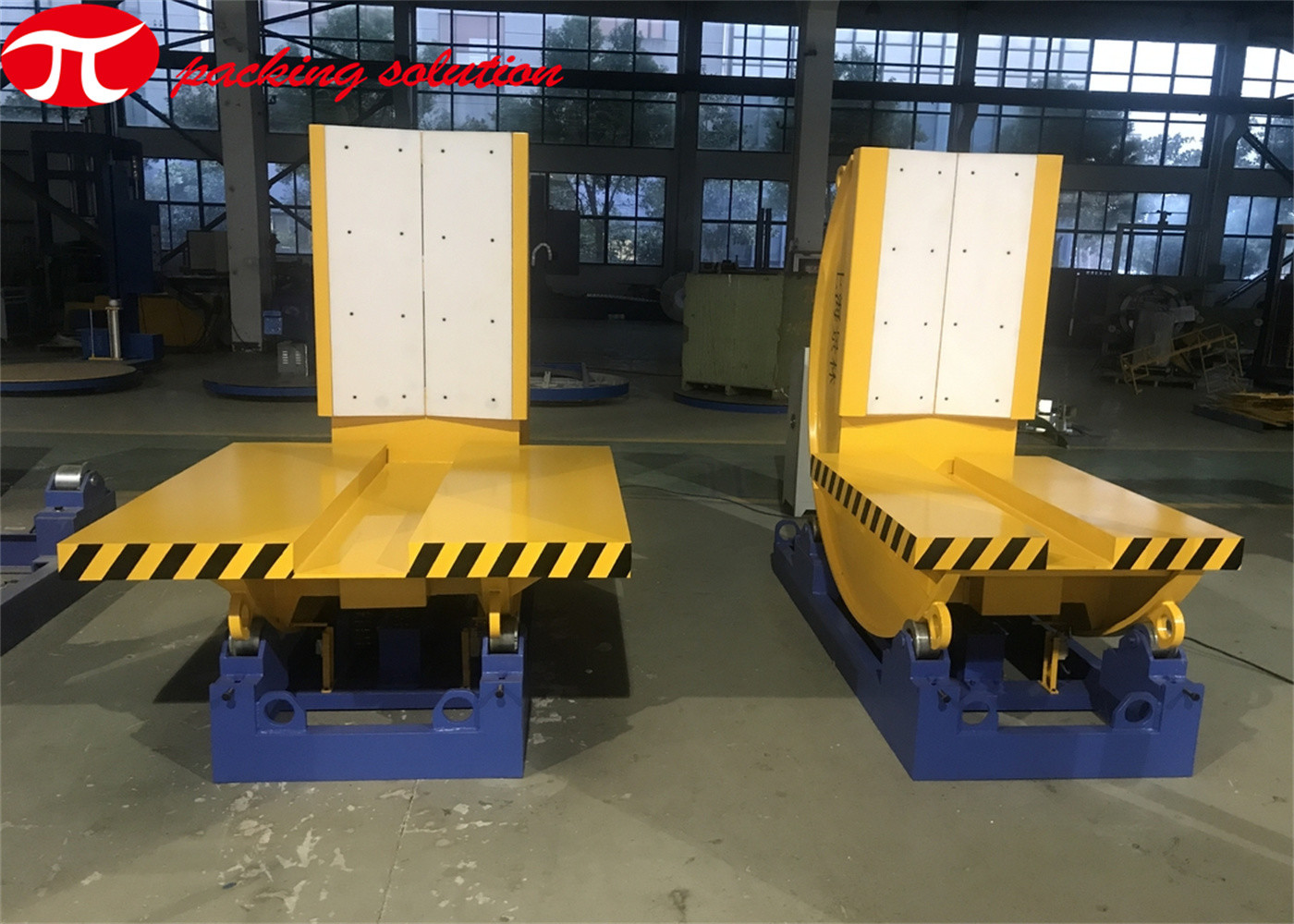

Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station

    Buy cheap Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station from wholesalers

    Buy cheap Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station from wholesalers
    • Buy cheap Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station from wholesalers
    • Buy cheap Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station from wholesalers
    • Buy cheap Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station from wholesalers

    Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : FZ-04
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Automatic Coil Upender FZ-04 Mould Turnover Machine With Independent Operating Station

    Automatic Coil Upender FZ-04 Mould Turnover Machine with Independent operating station


    Application:


    The FZ-04 is the type of industrial tilter which is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 4tons.Using this equipment can improve the efficiency of turnover, greatly reduce the cost for users.


    Basic features:

    • Special double chain drive, oblique gear and worm speed reducer.
    • Reasonable four-roller device for object holding makes tuning smooth and steady.
    • Independent electrical panel control for easy and safe operation.
    • Micrometric setting for adjusting the floor level.
    • Converter controls, Fast, stable and safe.
    • Both electric & mechanical limit restrictors adopted to grantee safe operation.
    • The machine can be stopped at any angle during turning.
    • Emergence stop and position locking function avoid rotation.
    • The machine will stop automatically when turning process finished.

    Main data (for reference):

    Item dataFZ-04
    Max loading4T
    One-way turn-over speed40s
    Transfer modeMechanical
    Power outputapprox. 1.5KW
    Working modeManual switch / remote control
    Product width600 mm
    Product diameter1500mm
    Product weightWithin 5000kg
    DimensionApprox. L2200mm/W1000/H1700mm
    Power voltageAC 380V, 3 phase 5wires
