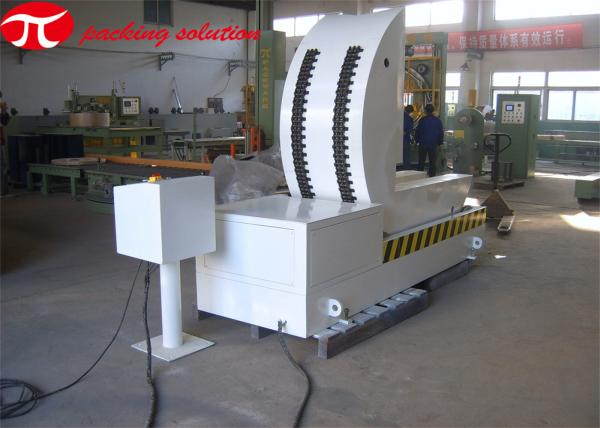

    Industrial Coil Tilter Mould Turnover Machine Mechanical Transfer 1.5KW CE Approved

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : FZ Series
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Industrial Coil Tilter Mould Turnover Machine Mechanical Transfer 1.5KW CE Approved

    Industrial Coil Tilter Mould Turnover Machine Mechanical Transfer 1.5KW CE Approved


    MACHINE APPLICATION:


    It is a packaging device that is very simple to operate and functional. It ensures the safety of production, the packaging effect is neat, beautiful, and the tension is strong, which improves the appearance quality. Increased product added value, reflecting the corporate image. Moreover, we provide this product in several specifications as per client’s requirements.


    MAIN PARAMETERS:

    Item dataFZ-03
    Max loading3T
    One-way turn-over speed50s
    Transfer modeMechanical
    Power outputApprox. 1.5KW
    Working modeManual switch/ remote control
    Product width600 mm
    Product diameter1500mm
    Product weightWithin 3000kg
    DimensionApprox. L2200mm/W1000/H1700mm
    Power voltageAC 380V, 3 phase 5wires

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.


    BASIC FEATURES:

    • Special double chain drive, oblique gear and worm speed reducer.
    • Reasonable four-roller device for object holding makes tuning smooth and steady.
    • Independent electrical panel control for easy and safe operation.
    • Micrometric setting for adjusting the floor level.
    • Converter controls, Fast, stable and safe.
    • Both electric & mechanical limit restrictors adopted to grantee safe operation.
    • The machine will stop automatically when turning process finished.
    • Emergency stop button can stop the machine rapidly in emergency conditions.
