    Vertical Electric Driven Steel Coil Wrapping Line Automatic 60mm - 400mm Width

    Automatic Vertical Electric Driven Steel Coil wrapping Line 60mm - 400mm Width for products' packing

    Application:

    This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.


    Basic composition:

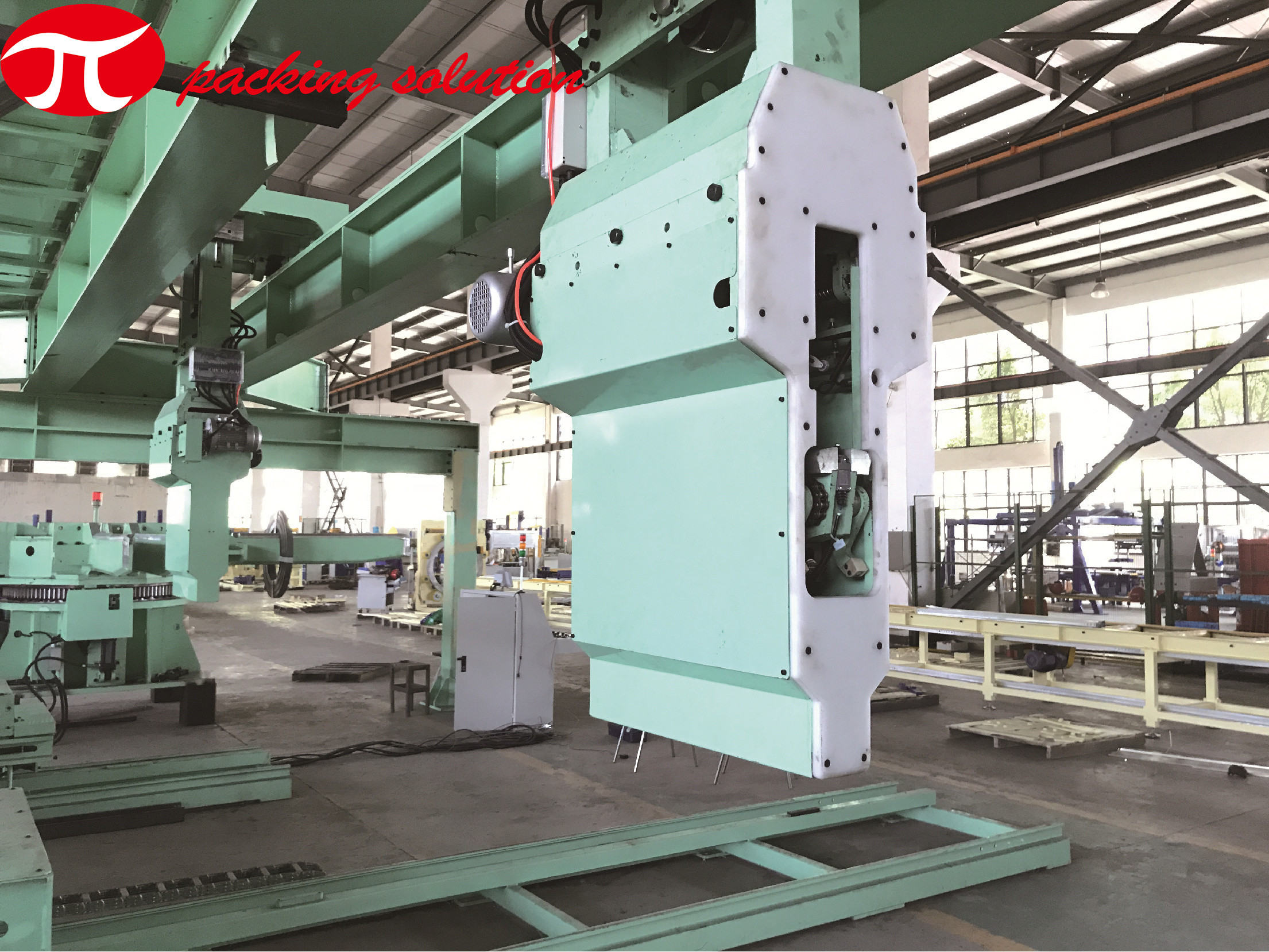

    The fully auto machinery is composed of turnstile, coil picking system, coil car, wrapping machine, stacking system, steel strapping station, electrical cabinet, guardrails, hydraulic station&etc.

    The semi-auto machinery is composed of coil aggregate car, pushing system, wrapping machine, coil tilter, electrical cabinet, safe guards, hydraulic station&etc.


    Main technical datas(for reference):


    OD:800mm~1500mm
    ID:508-610mm
    Width:60mm~400mm
    Weight:≤4T
    Wrapping material:LLDPE stretch film/compound paper
    Wrapping overlap:30%~80% adjustable
    Wrapping material size:film roll width 90mm, roll OD 500mm,roll ID 76mm

    Features:

    1.Well-known brands are adopted for main components.
    2.Guardrails for loading and unloading safety.
    3.Ring speed and Rolls speed adjustable by inverter.
    4.Difference packing material can be choosing.
    5.Separate electrical box for safe operation and technical testing and trouble-shooting.
