    GS300 Ring Type Automatic Rubber Tyre Packing Machine 150mm OD

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GS300
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

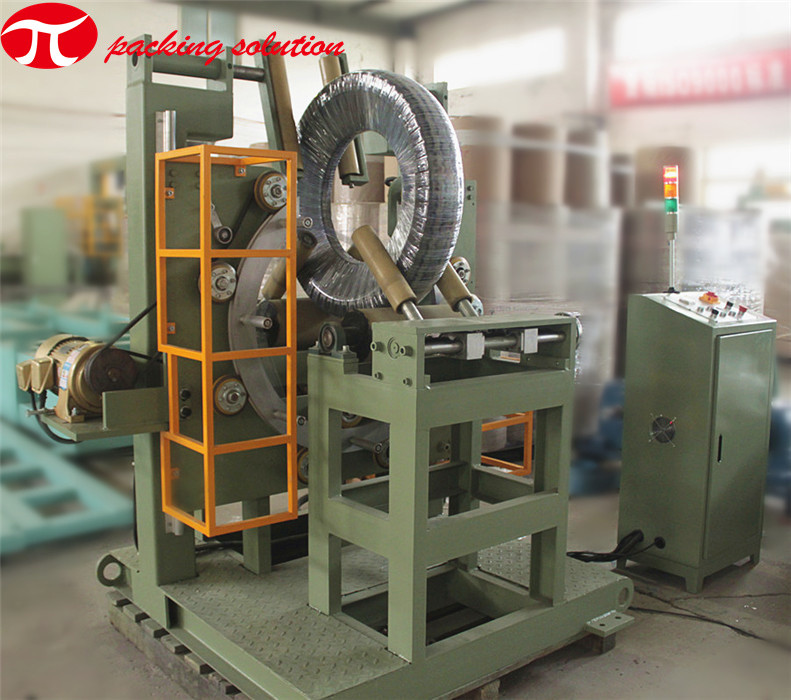

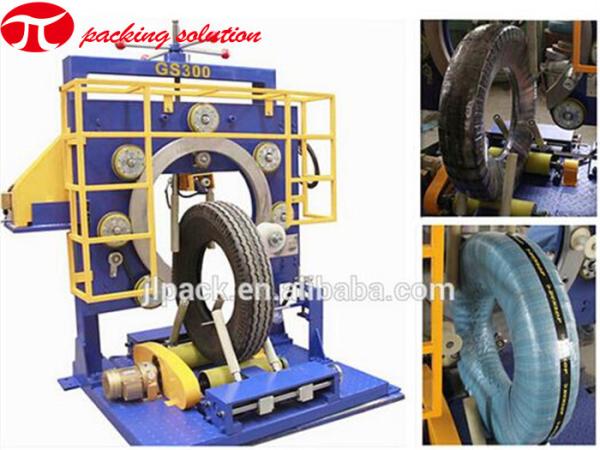

    GS300 Ring Type Automatic Rubber Tyre Packing Machine 150mm OD

    Good quality Ring Type Automatic Rubber Tyre Packing Machine 150mm Material OD GS300


    The packing machine application


    This tire packaging machine is mainly designed for tire packing and can also been widely used for other coiled objects like steel coil, wire coils,pipe coil,bearings,etc.


    Its advantage lies in completely replacing the manual winding packaging, packaging speed is fast, easy to operate, greatly improve the production efficiency, reduce the labor intensity of workers. The packing effect is neat.


    The packing machine main parameters

    ITEMGS300
    Object weight≤500kg
    Object height≤300mm
    Object OD500-1000mm
    Object ID≥300mm
    Roller speed2-4m,min
    Ring speed30-50r,min
    Suitable materialStretch film, Knit tape,paper tape etc.
    Material sizeWidth 100-150mm,OD 150mm,ID 54mm
    Power outputAbout 3.0kw

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.

    The packing machine main features:

    • PLC is used for easy operation.
    • Vertical mode is convenient for coil loading & unloading by hand.
    • Error indicator will be flicker when trouble occures.
    • Packing time can be set on the control panel, when time reached, machine will stop automatically.
    • Adopt special tension control device for good packing effect.
    • Baseboard height is adjustable for small and big coils' package.
    • Push-out device is optional for heavy object easy taking out.
