    Horizontal Loading Small Slide Bearing Wrapping Machine​ With PLC Control​ 70r/Min

    Ask Lasest Price
    Brand Name : jlpack
    Model Number :
    Certification : ISO9001,CE
    Price : USD
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Horizontal Loading Small Slide Bearing Wrapping Machine​ With PLC Control​ 70r/Min

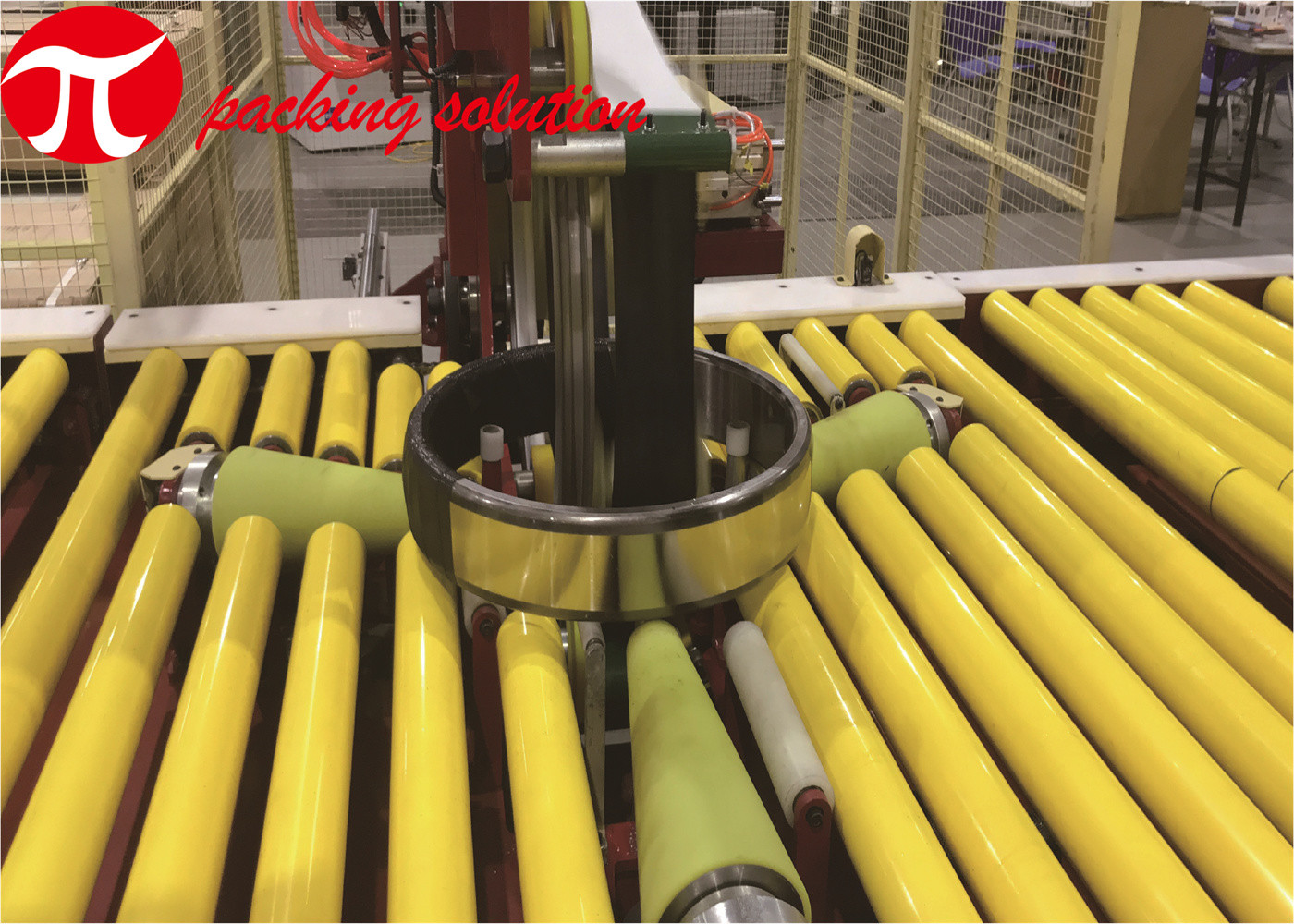

    Horizontal loading small slide bearing wrapping machine​ with PLC control​ 70r/min


    Horizontal loading small slide bearing wrapping machine​ with PLC control​ Application


    The bearing packing machine could be broadly used for wrapping bearings,coiled products, cable products& etc

    This packing can protect the products and let the products decorated well ,has good effect of rust-proff,dust-proff,anti-wear and anti-damage.


    Horizontal loading small slide bearing wrapping machine​ with PLC control​ Parameters

    ModelGW200-N
    Coil OD600-1000mm
    Coil ID400-600mm
    Coil width≤200mm
    Coil weight≤300KG
    Cutting typeAuto/Manual cutting
    Ring speedAppr.70r/min
    Packing materialknit tape, compound paper tape,stretch film, non-woven fabrics,etc
    Material SizeWidth;100-120mm OD;200mm ID;55mm
    Power outputAbout 1.5KW
    Air supply6-8kgf/cm2
    Circular labeling systemOptional
    Synchronous wrapping systemOptional

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.


    Horizontal loading small slide bearing wrapping machine​ with PLC control​ features:

    1. Automatic or semi-auto control can be chose according needs.
    2. High antifriction PU adopted for friction wheels; whole casting structure for turning ring.
    3. The turning ring height is adjustable, to suit for object with different ID and OD.
    4. Synchronous wrapping system can be equipped for wrapping two different material at the same time.
    5. The supportive rollers and protective rollers can be wrapped by PU according to needs.
    6. Special tension control system, the tension and overlapping rate of packing material can be adjusted according to needs.
    7. Different packing material can be used including knit tape, stretch film, non-woven fabrics, plastic tape, compound paper, hessian tape &etc.

    Horizontal Loading Small Slide Bearing Wrapping Machine​ With PLC Control​ 70r/Min
