    High Table Easy Loading Plastic PE Pipe Coil Verticl Packing Machine 600mm OD

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GD200-N
    Certification : ISO9001,CE
    Payment Terms : T/T
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    Supply Ability : 200 sets/Year
    • Product Details
    • Company Profile

    High Table Easy Loading Plastic PE Pipe Coil Verticl Packing Machine 600mm OD

    High Table Type Easy Loading Plastic PE Pipe Coil Verticl Packing Machine 600mm OD


    High Table Easy Loading PE Pipe Coil Packing Machine Application:

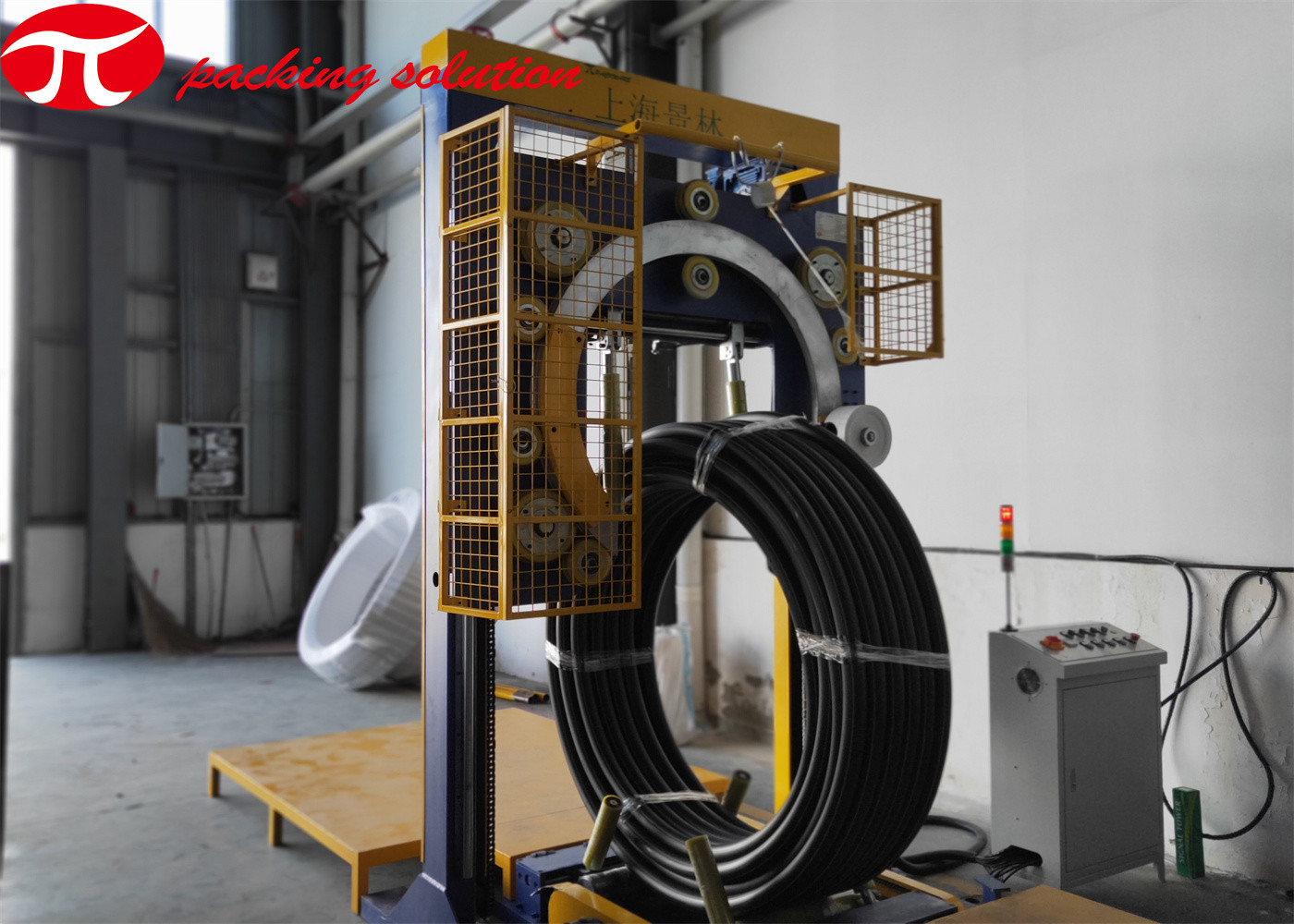

    This plastic pipe coil wrapping machine is specially for small pipes coils packing, with a high table structure for convenient operation of the operator. The wrapped coils are waterproof, rustproof, and have a clean and nice appearance for storage and selling.


    High Table Easy Loading PE Pipe Coil Packing Machine Basic Features:

    1) High working table structure for easy operation.

    2) Different material release structure will be adopted for different material packing.

    3) High antifriction PU adopted for friction wheels; turning ring is with whole casting structure.

    4) The ring height is adjustable, to adapt for coils with different diameter.

    5) The speed of the ring and the rollers are adjustable for different needs.

    6) The overlap extent is adjustable by converters.

    7) Special tension control system, the tension and overlapping rate of packing material can be adjusted according to needs.

    8) The supportive and protective rollers wrapped by PU.

    9) Protective fence for the running parts to ensure safety in operation.


    High Table Easy Loading PE Pipe Coil Packing Machine Parameters:

    ModelGD200-N
    Coil OD300mm-600mm
    Coil ID≥150mm
    Coil width≤200mm
    Coil weight≤10kg
    Cutting modeManual or auto cutting
    Ring speedAppr.80r/min
    Packing materialStretch film, knit tape, compound paper, etc
    Material width50-60mm
    Material OD80mm
    Material ID20mm
    Power output1.0KW
    Power supplyAC /380V
    Synchronous wrapping systemOptional
    Control modeAuto/semi-auto

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
