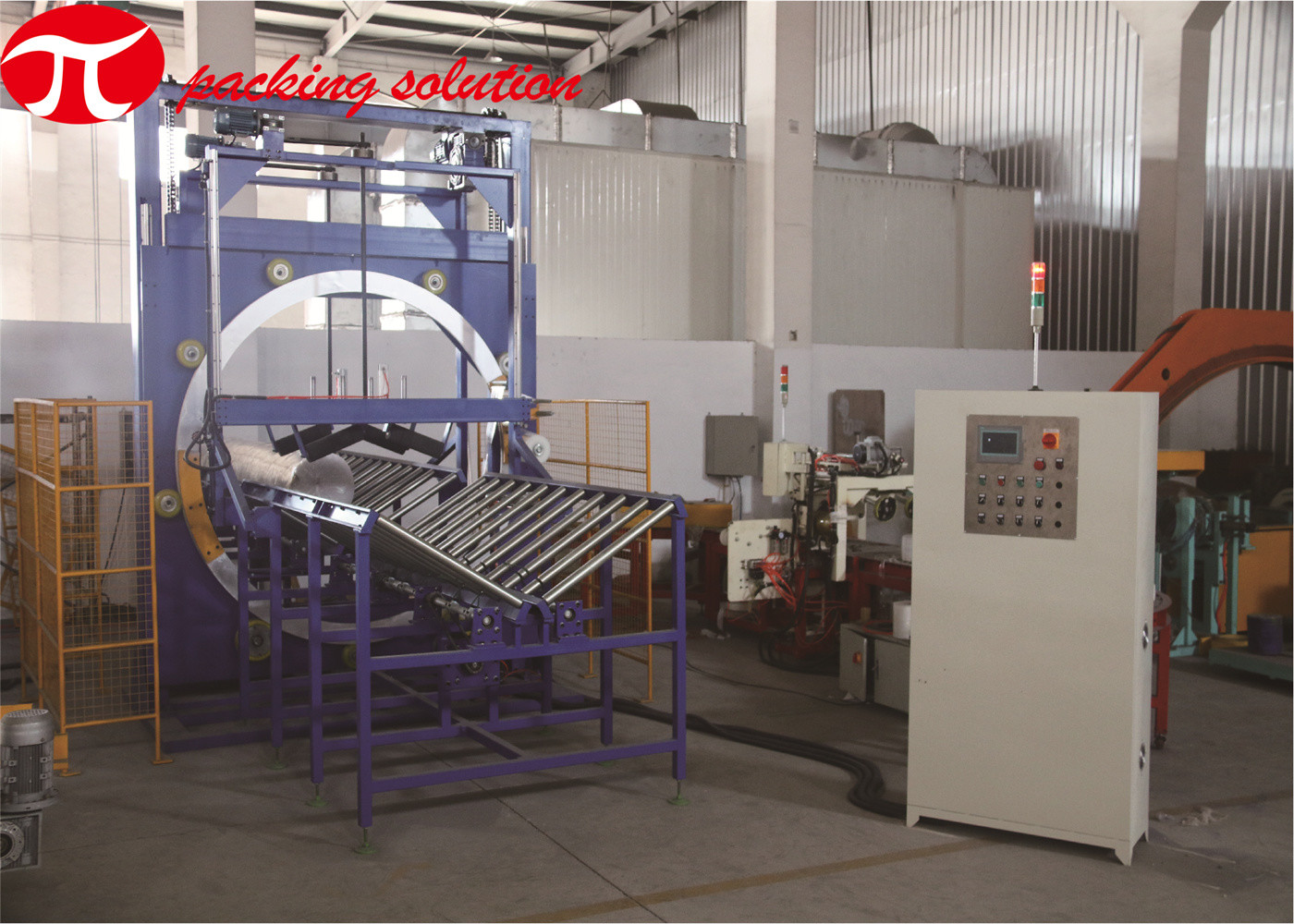

    Automatic Horizontal Steel Copper Packing Machine PLC Control ​With V-Type Conveyor

    Automatic horizontal Steel & Copper Packing Machine PLC Control ​With V-type Conveyor


    Packing machine application:


    This packing line takes compound paper as the main packing material,applied for coil picking,auto packing,strapping stacking&etc of slit steel coils,makes the object well packed and strapping stacked,convenient for storage and transportation.


    Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished.


    Packing machine installation main features:

    1. PLC programmable control.
    2. Wrapping position reset.
    3. Both automatic and semi-auto working mode for different choice.
    4. Photocell sensors are adopted for fixing the packing position.
    5. The turning ring is controlled by converter.
    6. Packing material tension could be adjusted.
    7. Overlap rate of the wrapping material can be adjusted according to needs.
    8. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
    9. Protective fence ensure safe operation.
    10. Pressing down device and supportive rollers for fix the packaging position.
    11. Automatic material feed & cutting system can be equipped for human operation.
    12. The machine can be custom designed according to specific object size.

    MAIN PARAMETERS:

    ItemsGG800
    Max circumcircle diameter800mm
    Weight≤3T
    Pipe length2000-9000mm
    Conveyor length1000-6000mm(can be customized)
    Conveying speed8m-12m/min
    Rotating speed60r/min
    Conveyor height900mm
    Overlap scope10%-90%
    Power output9kw
    Power voltage380V/ 3phase/50Hz
    Material

    Compound paper tape/knit tape/anti-rust tape/waterproof tape

    LLDPE stretch film

    Material size

    width:200-300mm

    Max OD:400mm

    ID:55mm


    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
