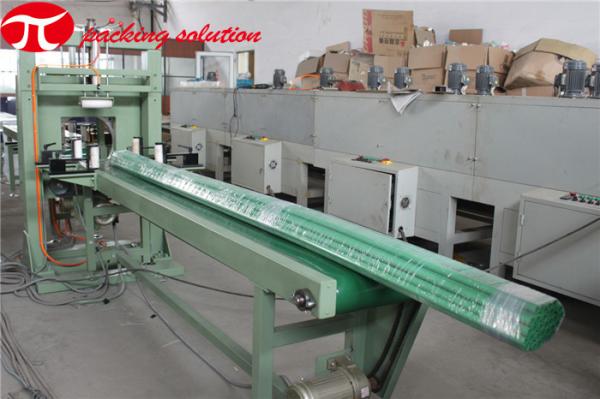

500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC

    Buy cheap 500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC from wholesalers

    Buy cheap 500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC from wholesalers
    • Buy cheap 500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC from wholesalers
    • Buy cheap 500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC from wholesalers

    500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GG300
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand alone 1 week,the packing line 150 days
    • Product Details
    • Company Profile

    500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC


    500kg Horizontal Wrapping Machine 1.5kw 0-12m/min Stretch Film Wrapper Control mode PLC


    Machine application:


    Horizontal Wrapping Machine are extensively appreciated in the market for their indispensable features such as compact designs, long service life, high functionality, hassle free performance, anti corrosive body, robust construction, etc. The machines provided by us are manufactured using the best quality components and innovative technology under the stern vigilance of our dedicated professionals in tandem with industry quality standards.


    Machine application parameters:

    ModelGG300
    Control modePLC
    Work modeAuto/manual
    Section diameter of the object≤300mm
    Object length1000-6000mm
    Object weight500kg
    Ring speed80r/min
    Conveyor length6000mm*2 (can be customized)
    Conveyor speed6-12m/min
    Packing material

    Stretch film/knit tape/compound paper tape

    Core inner diameter:55mm,

    outer diameter:250mm,

    Width:100-150mm

    Power outputAppr.2.0kw
    Supply voltageAC380V/50HZ
    Control voltageADC24V
    Air supply6-8kgf/cm2

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.


    Machine basic features:

    1. PLC control system and HMI touch screen operation.
    2. Friction structure adopted for safe, steady and strong operation
    3. Automatic object tracking, precise positioning, convenient and safe for operation.
    4. Special tension adjust system ensures uniform tension of the packing material.
    5. Mechanical hand for automatic packing material feeding and cutting, safe and efficient.
    6. The protective rollers wrapped by polyurethane to protect the object from scratches.
    7. Soft start and soft stop functions for safe operation.
    8. Automatic error alarming.
    9. The conveyor can be galvanized roller, rubber coated roller, belt conveyor& etc and the length can be customized according needs.

    500kg Horizontal Wrapping Machine 1.5kw 0-12m/Min Stretch Film Wrapper Control Mode PLC
