    70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine

    Ask Lasest Price
    Brand Name : JLPACK
    Model Number : GG800
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand alone 1 week,the packing line 150 days
    • Product Details
    • Company Profile

    70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine

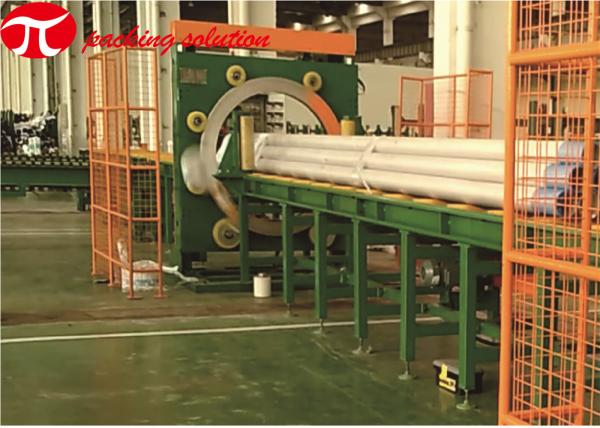

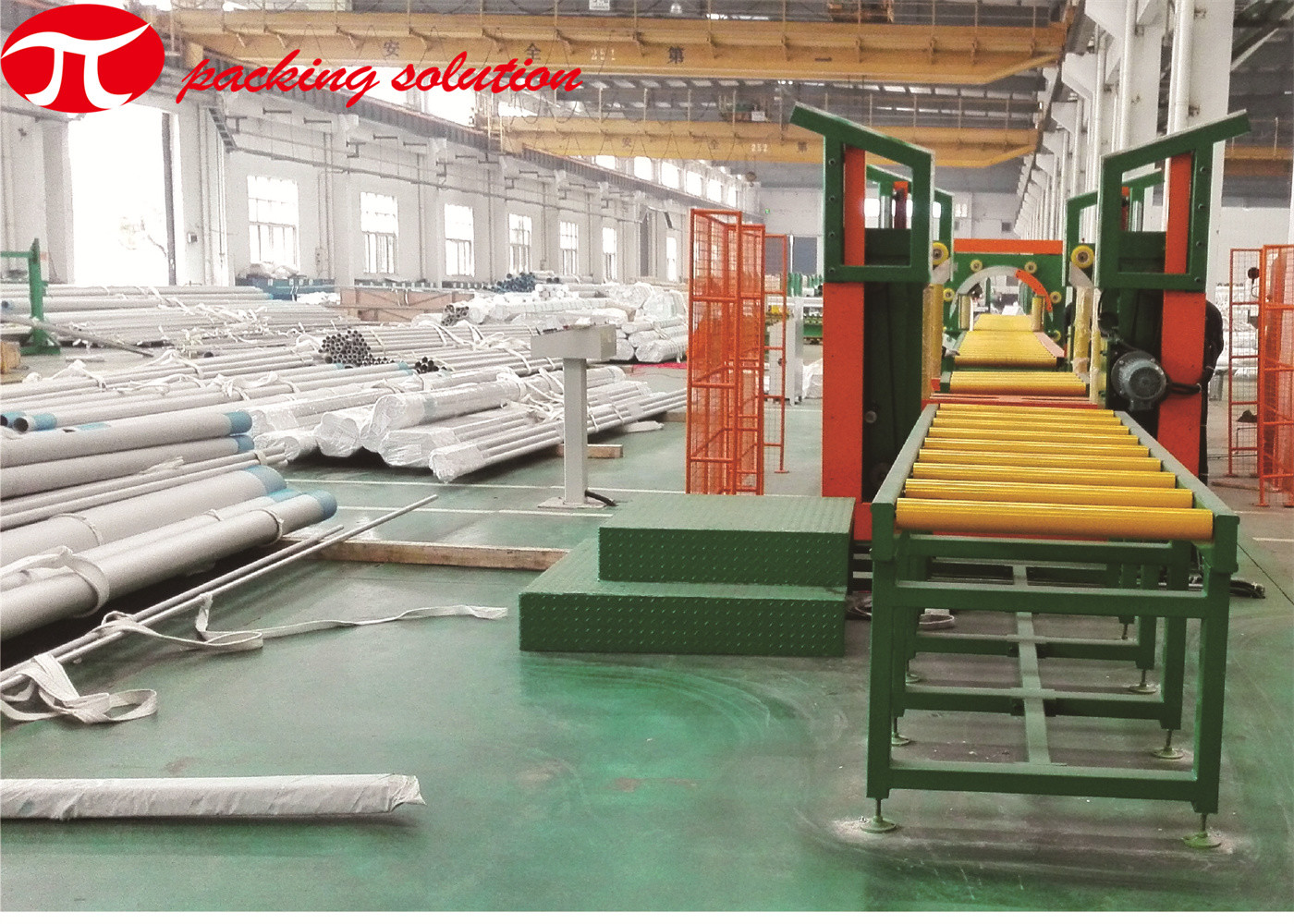

    JL PACK Horizontal Copper&Steel Tube Packing Wrapping Machine Stretch with 70r/min speed


    Packing machine application and installation:


    The horizontal wrapping machine is specialized for Steel & Copper tubes .

    The wrapped package is well-protected & sealed & looks more tidy.Indicator alarms automatically when trouble occurs.

    The machine can be custom designed according to specific object size.

    The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.


    Packing machine installation basic operation:

    • Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished. The next wrapping process should begin after the back line cleared.
    • The wrapping material is tied, fixed and cut by manual.

    Packing machine installation main features:


    1. PLC programmable control and HMI operation
    2. Soft stop &soft start functions.
    3. Both automatic and semi-auto working mode for different choice.
    4. Photocell sensors are adopted for fixing the packing position.
    5. Automatic fault alarming
    6. The turning ring is controlled by converter.
    7. Packing material tension could be adjusted.
    8. Separate control panel makes operation & maintenance easily.
    9. Pressing down device and supportive rollers for fix the packaging position.
    10. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
    11. Overlap rate of the wrapping material can be adjusted according to needs.
    12. Automatic material feed & cutting system can be equipped for human operation.

    MAIN PARAMETERS:

    ItemsGG800
    Height of the product≤800mm(can be adjustable)
    Pipe lengthNot limited
    Weight≤2T
    Conveyor length1000-6000mm(can be customized)
    Conveying speedAbout 10m-20m/min
    Rotating speedAbout 70r/min
    Conveyor heightApprox. 1000mm
    Overlap scopeAbout 10%-90%
    Power outputAbout 2.4kw
    Power voltage

    380V / 3phase / 50Hz

    Material

    Compound paper tape/knit tape/anti-rust tape/waterproof tape

    LLDPE stretch

    stretch film

    Material size

    width:≤250mm

    Max OD:400mm

    ID:55mm

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
