    Galvanized Steel Wire Packing Machine Automatic 4m/Min GS500 1.5KW Electric Driven

    Automatic Galvanized Steel Wire Packing Machine 4m/min GS500 1.5KW Electric Driven

    Automatic galvanized steel wire packing machine application:

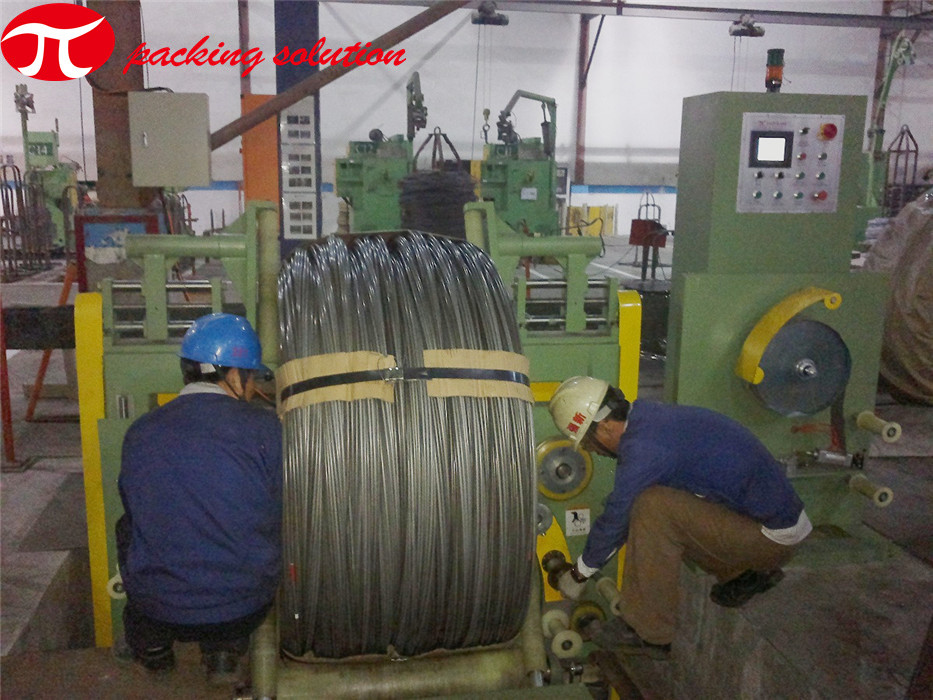

    The steel wire coil packing machine is designed by Jinglin for automatic packing needs of different wire objects including steel wires, galvanized wires, stainless steel wires, copper wires, binding wires and other type of wires which helps the modern industry to greatly improve the packing efficient and save labor cost.


    Automatic galvanized steel wire packing machine​ features:

    1. PLC adopted for automatic wrapping control.
    2. Different vertical or horizontal structure chose for different objects or according to special requirement.
    3. Automatic or semi-auto control mode for the steel wire coil packing machine.
    4. Two modes of tape wrapping structure available for using different wrapping material.
    5. Anti-wear polyurethane adopted for the friction wheel, ring with integral mould structure.
    6. Ring height could be adjusted for different object ID&OD.
    7. Synchronous wrapping (two kinds of wrapping material working together) is available.
    8. Wrapping material available: woven belt,stretch film,non-woven fabrics,plastic tape,compound paper tape,sackcloth tape etc.
    9. Special tension control system adopted; the overlap rate and material tension could be adjusted according to needs.
    10. The carrier roller and protective roller can be rubber wrapped according to needs.

    Automatic galvanized steel wire technical data:


    ITEMSGS200GS300GS500
    Object OD500-800 mm500-1000mm600-1200mm
    Object ID≥200mm≥300mm≥400mm
    Coil height≤200mm≤300mm≤500mm
    Coil weight≤100KG≤500Kg≤1000kg
    Roller speed2-4m/min2-4m/min2-4m/min
    Ring speedApprox 20-80r/minApprox 20-80r/minApprox 20-80r/min
    Applicable materialCompound paper/woven tape /stretch film/etc.Compound paper/woven tape /stretch film/etc.Compound paper/woven tape /stretch film/etc.
    Wrapping material size

    Width:60-100mm

    Roll OD:100mm;

    Roll ID:50mm

    Width:100-150mm

    Roll OD:150mm;

    Roll ID:50mm

    Width:100-150mm

    Roll OD:150mm;

    Roll ID:50mm

    Power outputAbout 1.0kwAbout 3.0kwAbout 4.5kw
    Power voltageAC/380V/3phase 5wiresAC/380V/3phase 5wiresAC/380V/3phase 5wires
    Pushing our deviceoptionaloptionaloptional
    Labeling deviceoptionaloptionaloptional
    Synchronous wrapping deviceoptionaloptionaloptional

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
