    Automatic Copper Coil Wrapping Machine PLC Control OD 600mm-1200mm

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : Customized
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Automatic Copper Coil Wrapping Machine PLC Control OD 600mm-1200mm

    Automatic Copper Coil Wrapping Machine Pallet winding machine OD600mm-1200mm With PLC Control

    Automatic Copper Coil Wrapping Machine PLC Control OD 600mm-1200mm


    Description:

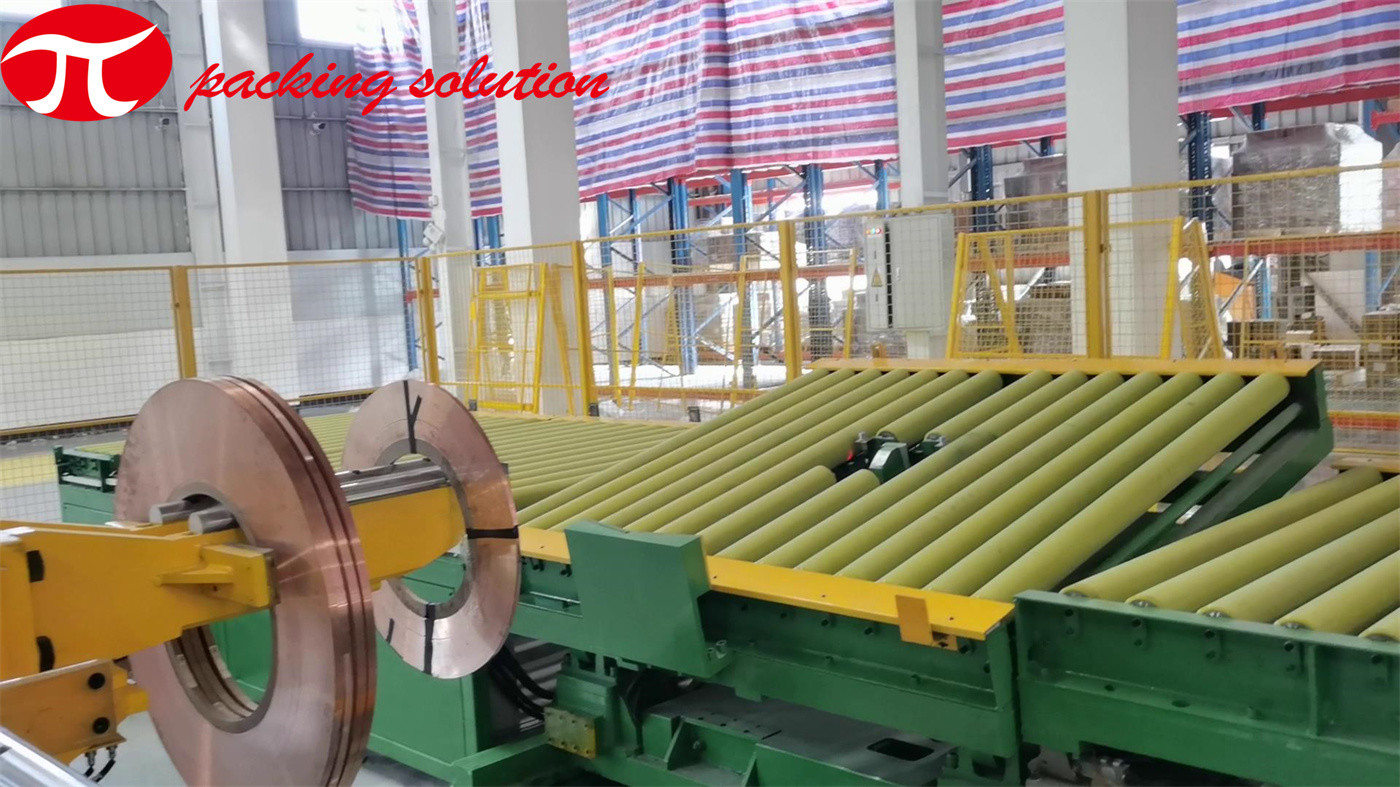

    This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for copper coils ,plastic coils,stell coils .It makes the object well packed and stacked, convenient for storage and transportation.


    Basic composition:


    Coil loading systemPicking & tilting machine
    Wrapping machineStacking system
    Electrical cabinetGuardrails

    Technical datas(for reference):


    OD600mm~1200mm
    ID300-800mm
    Width60mm~500mm
    Weight≤200KG
    Wrapping materialLLDPE stretch film/compound paper
    Wrapping overlap30%~70% adjustable
    Wrapping material sizefilm roll width 90mm, roll OD 500mm,roll ID 76mm

    OD:600mm~1200mm

    ID:300-800mm

    Width:60mm~500mm

    Weight:≤200KG

    Wrapping material:LLDPE stretch film/compound paper

    wrapping overlap: 30%~70% adjustable

    Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm


    FAQ

    Q:Are you a manufacturer or a trading company in china?

    A: We are packaging machine manufacturer in shanghai and workshop in Changzhou city.

    Q:Is it possible to send me video to show how machine is working ?

    A: Yes,we freely invite customer to watch video through our link on the youtube.

    Q:How can I know the quality control of your machine?

    A: There are two ways for customers ,one is visiting us to check all equipments and test it, another one is you send someone over to test and inspect.

    Q: How can I pay my order?

    A: We accept T/T And L/C only.
